Durable. Modular. Efficient.The future of bitcoin mining.Upgrade, repair, and replace Rig’s core components. On the rack.
Industry-leading
9.4kW
Per foot
As low as
14.1J/TH
Air-cooled
Under
90sec
on-rack repairs
Modular
design
Purpose built. Field tested. Future-proof infrastructure.
Upgradeable hashboards

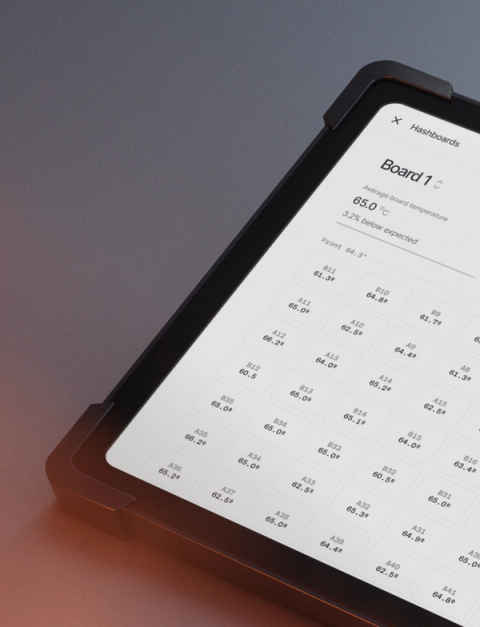

Dynamic LED and software alerts
Open source firmware, software, and APIs
Fewer fans, fewer failures
Air-cooled and immersion ready
Max
power
density
Get up to 9.4 kW/ft with 3 PSUs and 9 hashboards per chassis.
390 mm
290 mm
More power in the same footprint compared to the leading competitor.
Tech specs

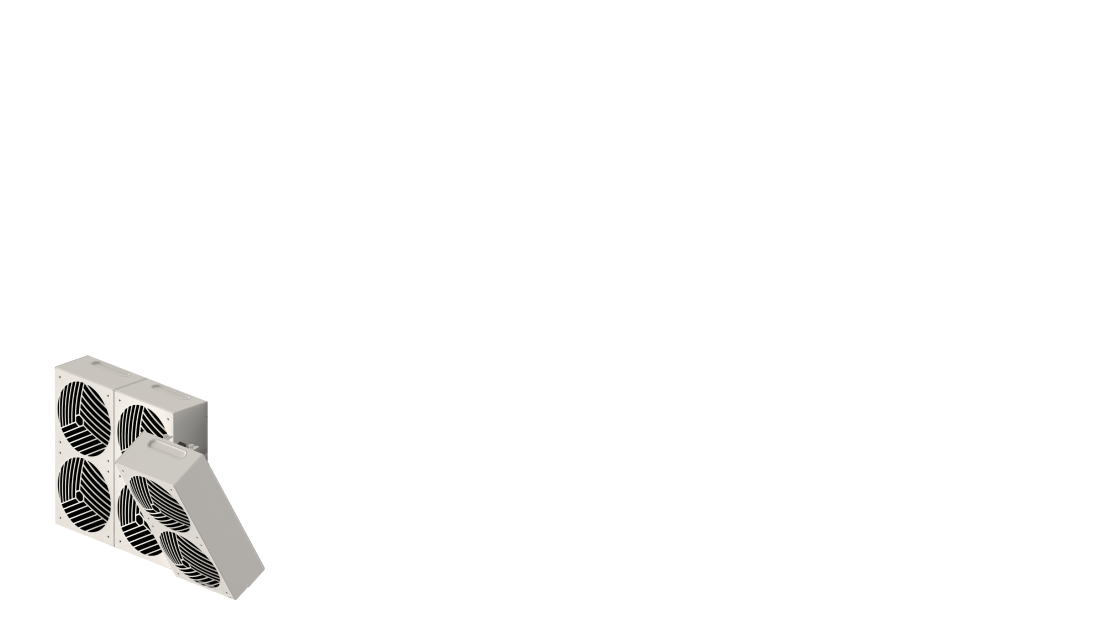

- Fan modules

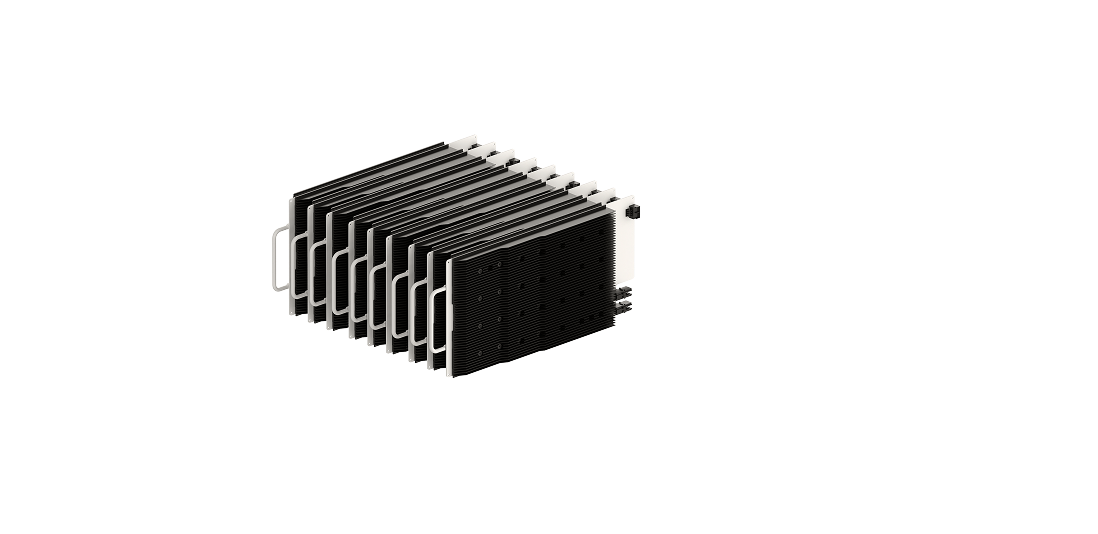

- Hashboards

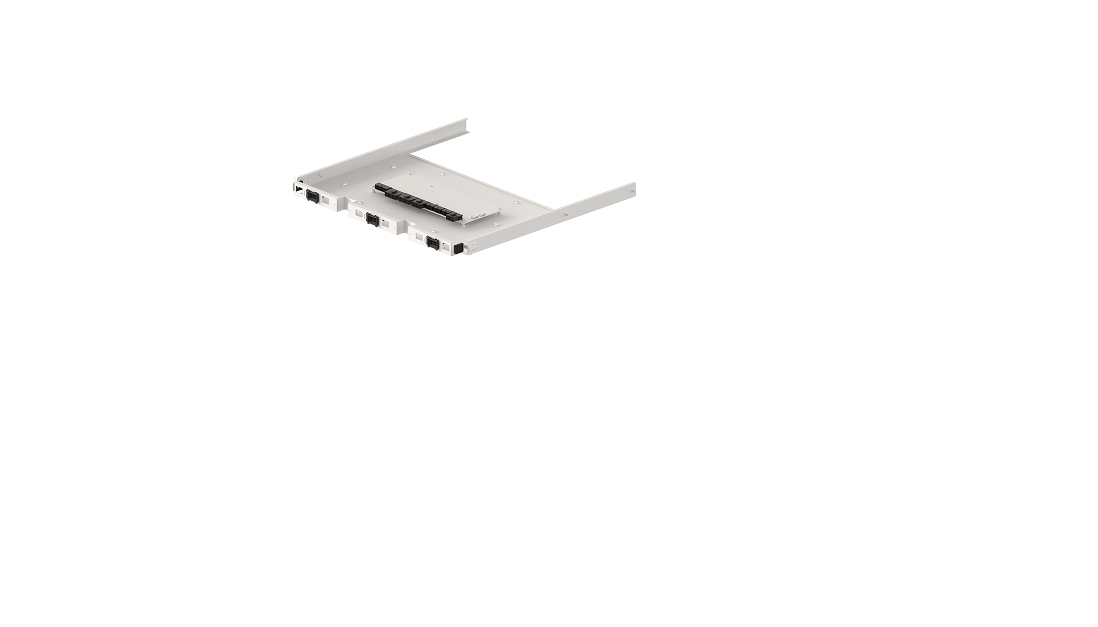

- Control board

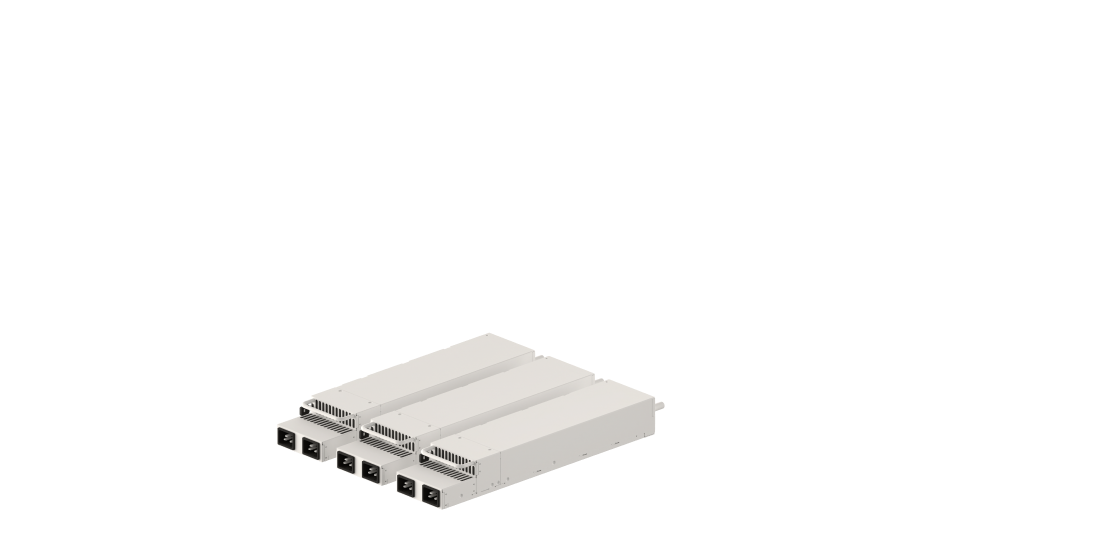

- Power supply unit

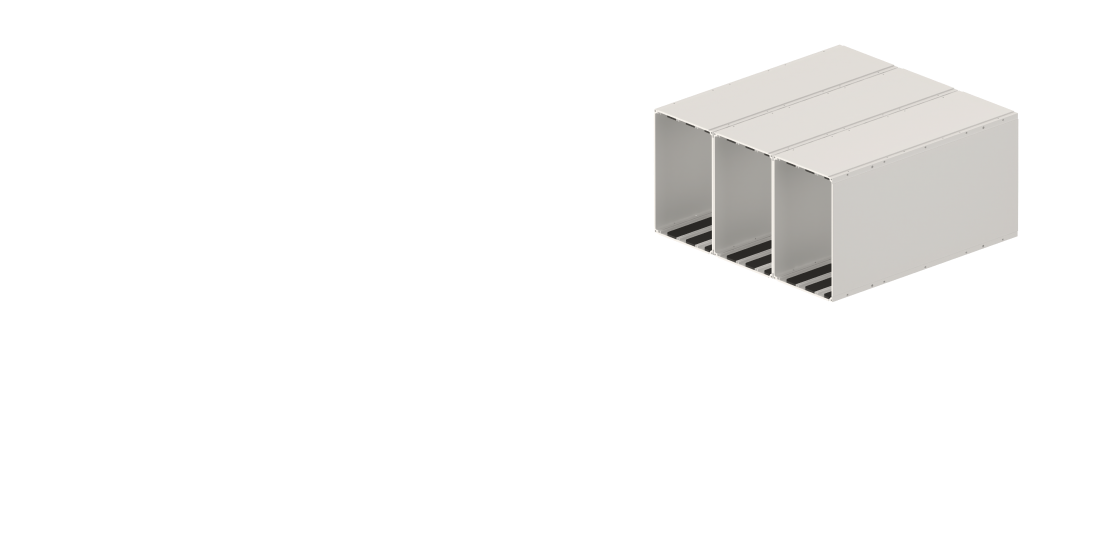

- Chassis
- A
- B
- C
- D
- E
Performance Metrics
Hashrate
Up to 91 TH/s per board
Up to 819 TH/s with 9 hashboardsPower Efficiency
As low as 14.1 J/TH
Power Consumption (from wall)
Up to 12,000 W (4,000 W per PSU)
Dimensions
Width
390 mm
Height
290 mm
Depth
500 mm
Total System Weight (9 Hashboards)
110 lbs
Hashboard Weight
5.38 lbs
Power
AC input voltage
208–240 V
AC input Frequency
50/60 Hz
Power Cables (Included)
3x 6 ft. C20 to 2x C19
Cooling
PSU Actively cooled by system fans
System specs
Chassis
Steel & aluminum chassis with Premium Powder Coating
Fans
6x High efficiency 48V Delta fans (variable speed up to 9,000 RPM)
Network Connectivity
RJ45 Ethernet 10/100M
Display Panel

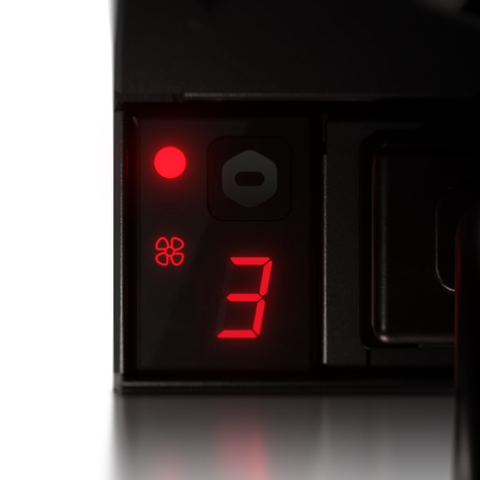

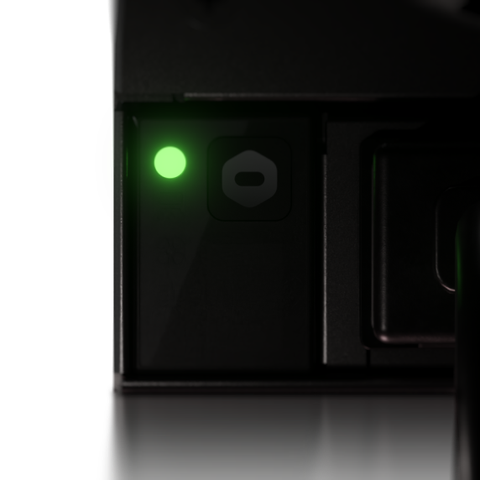

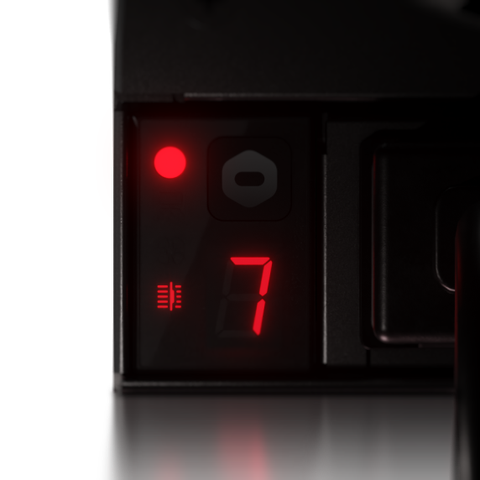

Action button with 7-segment display & system status indicator
Operating requirements
Operating Humidity (Non-condensing, RH)
10-90%
Operating Altitude
≤2,000 meters
Warranty
Standard warranty (coverage of all system components)
12 Months
Extended Warranty
Optional Add-on
